Every other wire is connected to a metallic ground plane.
A 1V potential is applied to the end of RJ45 contacts. This is an example of an electromagnetic radiation simulation through an RJ45 connector. Embedded in the same CST user interface, CST EMS features a variety of solver module to tackle electrostatics, magnetostatics, current flow and low frequency problems, and can be coupled to other CST STUDIO SUITE® modules for charged particle and multiphysics simulations.Īpplications include: actuators, brakes, EMC, generators, motors, sensors, transformers measurement instrumentation, and shielding effects. Radiation field emitted by a circular horn antennaĬST EM STUDIO® (CST EMS) is dedicated to the simulation of static and low frequency devices. The transient impedance response of an electrical lead is also shown below.ĬST MICROWAVE STUDIO – 2017 Frequency Domain Solver The following image shows a schematic of the silicon wafer model. This is an example of the response of a boron and gallium-doped silicon wafer solved in the time domain.

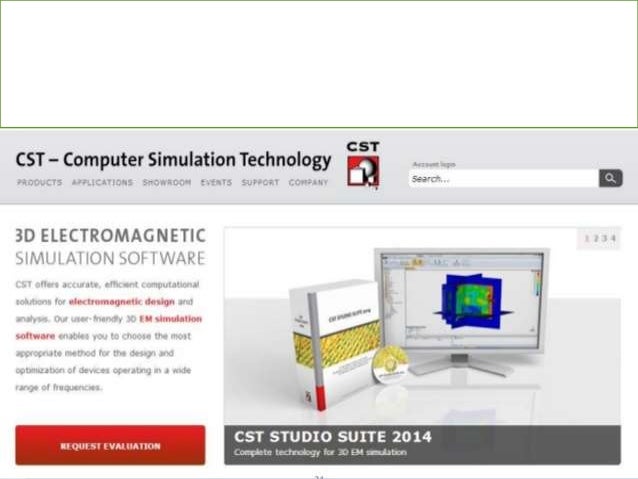

The flagship modules include Time Domain solver and Frequency Domain solver. CST MWS’ unparalleled performance is making it first choice in technology leading R&D departments. CST MICROWAVE STUDIOĬST MICROWAVE STUDIO ® is a specialist tool for the 3D EM simulation of high frequency components. With Rescale’s scalable compute workflow, users can run conveniently run CST SUDIO SUITE models on multiple cores to achieve low run times. We are currently supporting the following modules in batch: CST MICROWAVE STUDIO ® (MWS), CST EM STUDIO ®, CST PARTICLE STUDIO ®, and CST MPHYSICS STUDIO ®. CST Studio Suite ® gives customers the choice of multiple powerful solver modules, including modules based on numerous different methods including finite element method (FEM), method of moments (MoM), multilevel fast multipole method (MLFMM) and shooting boundary ray (SBR), each offering distinct advantages in their own domains.ĬST STUDIO SUITE contains various modules. It is an integrated design environment that contains tools for the design and optimization of devices in a wide range of frequencies from static to optical. CST STUDIO SUITE ® is a collection of electromagnetic simulation software.
